Air compression series
801A Portable Calf Air Compression Massager
Rechargeable paired calf wraps with 3 modes, 3 intensity levels and 3 heat settings.
Model 801A · Leg
Product design at a glance.

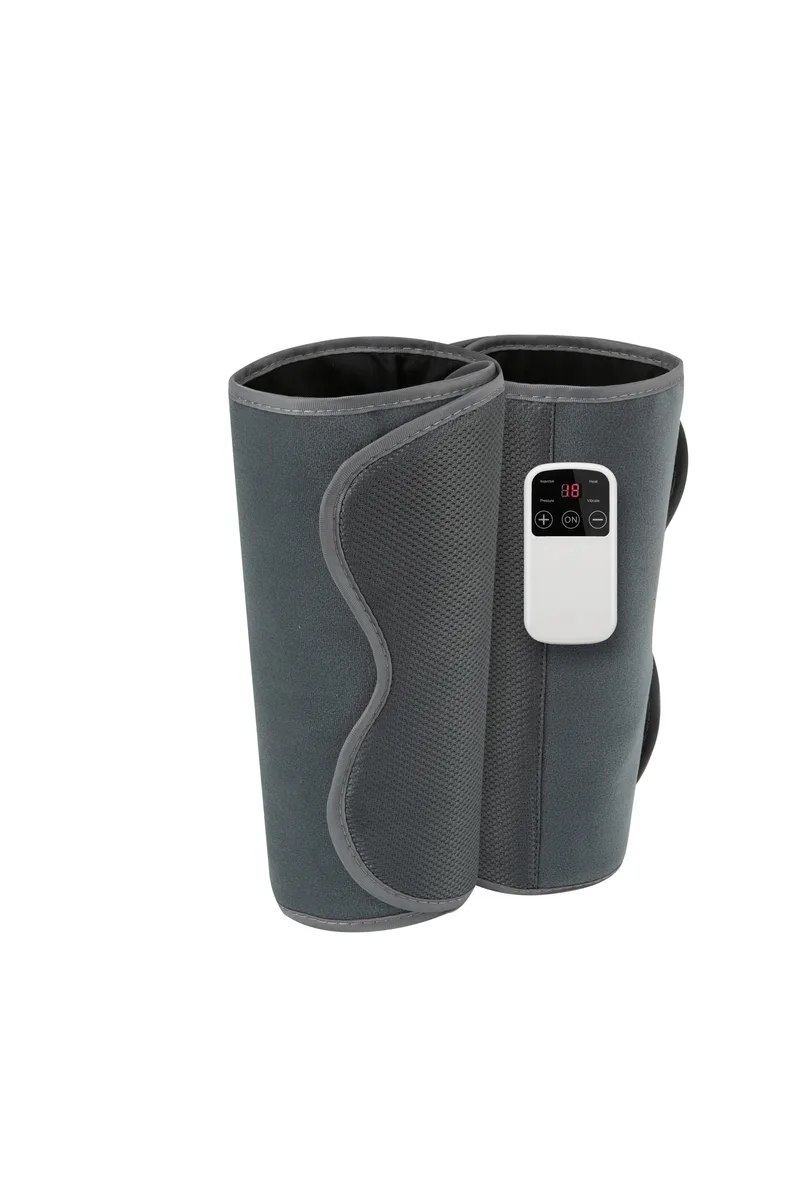

The 801A is a portable single-section air compression calf massager for relaxation and recovery assortments. Paired wraps connect to a compact controller with a built-in 18650 lithium battery, offering 3 massage modes with 9 stages, 3 intensity levels and 3 heat settings. Use while charging is supported. OEM branding and packaging are discussed per project.
- Model reference
- 801A
- Product category
- Air Compression Leg Massagers
- Design features
- Paired single-section calf wraps · Rechargeable controller · Gray mesh textile · White controller version shown in gallery
Images show the product design. Confirm technical configuration with our team before selecting a sample or placing an order.
MOQ, samples & lead time
- Minimum order quantity: confirm with our team.
- Samples: available on request — confirm cost and timing with our team.
- Stock items dispatch within 24 hours; customized orders are scheduled per project.
Certifications for this model
Certificates and test reports are matched to specific models. The mapping between certification models and this export model is being confirmed — tell us your destination market and we will list the applicable documents.
See the certification overviewTechnical overview
801A specifications
Values are taken from the factory specification sheet for this model.
- Massage area
- Calves (single-section wraps)
- Massage modes
- 3 modes / 9 stages
- Intensity settings
- 3 levels: low, medium and high
- Heating
- 3 levels: low, medium and high; heating time set to 15 minutes
- Automatic shut-off
- 20 minutes; changing the mode or intensity does not change the shut-off timing
- Battery
- 18650 Li-ion 3.7 V / 2500 mAh; use while charging supported
- Charger
- DC 5 V / 2 A, 10 W (0.8 m cable)
- Air pump pressure (component specification)
- 100–120 kPa
- Operating noise
- Below 60 dB
- Controller dimensions
- 120 × 70 × 30 mm (L × W × H)
- Wrap dimensions
- 540 × 335 × 5 mm (L × W × H)
- Controller + paired wraps weight
- 306 g
- Operating temperature
- 0–40 °C
- Protection
- Overcurrent, overvoltage, overcharge and over-discharge protection
These specifications are transcribed from the supplied WY-801A specification sheet. The 100–120 kPa value is the air pump component specification, not wrap operating pressure. Confirm the controller version and destination-market charging accessories when reviewing samples.
OEM customization
What we can customize on this model.
Customization is reviewed per project. Share your market and branding requirements to start.
Colors & fabrics
Textile colors and finishes discussed per model, including mesh and embroidered versions.
Packaging
Color boxes and export cartons designed for your channel.
Manual language
Instruction manuals prepared in your market language; a Spanish manual already exists for the 804LS-L.
Voltage & plug
Adapter-powered and rechargeable configurations with plugs matched to the destination market.
Exclusive models
Exclusive model supply arrangements are available for OEM partners, agreed per project.
Model-specific information
Documents & downloads
Review the documents for your model, controller configuration and destination market together.
801A document review
No public download is attached to this model yet. Contact our team for the current specification sheet, instructions and relevant documents.
Configuration, availability and applicable documents are confirmed for the selected model.
Buyer FAQ
801A frequently asked questions
What is the MOQ for the 801A?
Minimum order quantity depends on the model and configuration. Confirm with our team when you send your enquiry.
Can I order a sample of the 801A?
Samples can be arranged for every model. Sample cost and delivery time are confirmed with our team per request.
Which certificates apply to the 801A?
Certificates and test reports are matched to specific models, and the mapping for export models is being confirmed. Tell us your destination market and we will provide the applicable document list for this model.
Can the 801A be customized for my brand?
Yes. Logo, color, textile, packaging, manual language and voltage/plug options are discussed per project. See the customization options on this page or our OEM/ODM page.
How long does delivery take for the 801A?
Stock items dispatch within 24 hours. Lead time for customized orders is confirmed with our team per order.
