Air compression series
804A Full-Leg Air Compression Massager

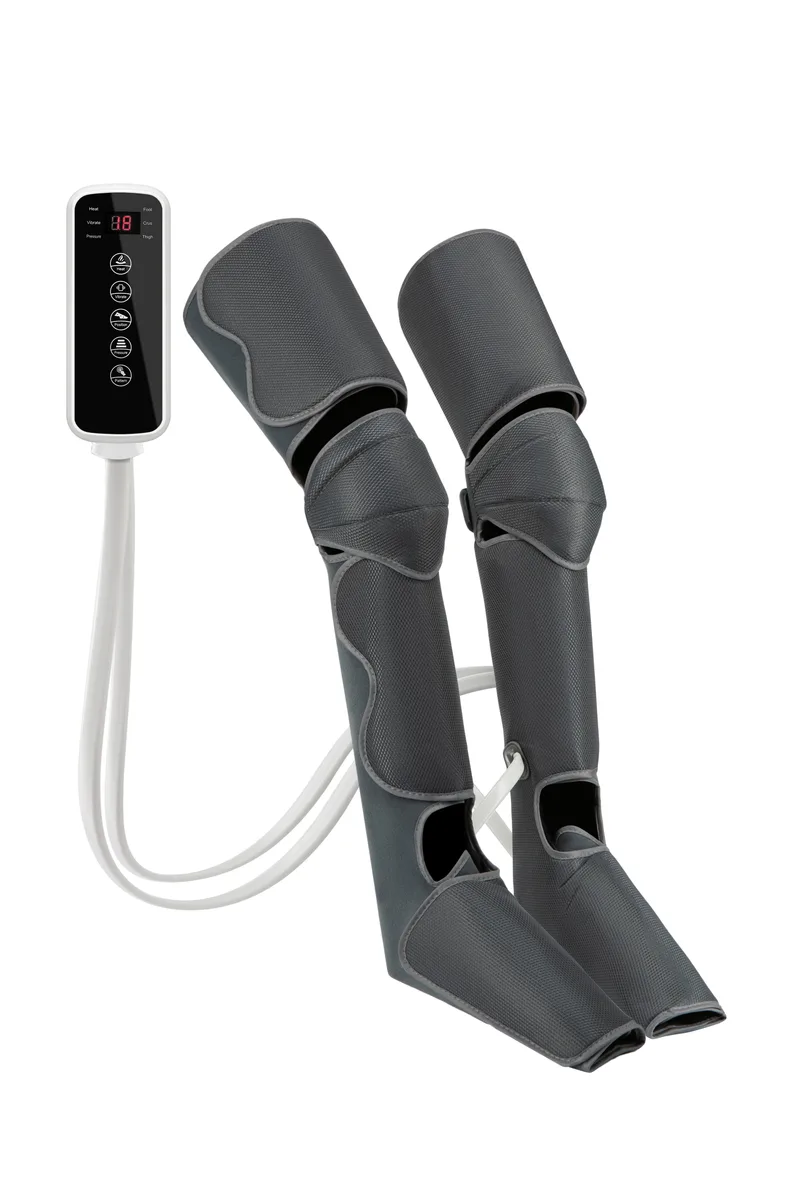

Paired foot-to-thigh leg wraps with a separate controller, 3 massage modes and 3 intensity levels.
Model 804A · Leg
Product design at a glance.
The 804A is our flagship full-leg air compression massager for relaxation and recovery product ranges. Paired wraps cover the feet, calves and thighs, and a separate touch controller drives 3 massage modes with 9 stages and 3 intensity levels. The adapter-powered configuration documented below runs on DC 12 V / 2 A. OEM branding, color, fabric and packaging options are discussed per project.
- Model reference
- 804A
- Product category
- Air Compression Leg Massagers
- Design features
- Paired full-leg wraps · Foot, calf and thigh sections · Separate touch controller · Gray mesh textile; black embroidered version available
Images show the product design. Confirm technical configuration with our team before selecting a sample or placing an order.
MOQ, samples & lead time
- Minimum order quantity: confirm with our team.
- Samples: available on request — confirm cost and timing with our team.
- Stock items dispatch within 24 hours; customized orders are scheduled per project.
Certifications for this model
Certificates and test reports are matched to specific models. The mapping between certification models and this export model is being confirmed — tell us your destination market and we will list the applicable documents.
See the certification overviewTechnical overview
804A specifications
Values are taken from the factory specification sheet for this model.
- Massage areas
- Feet, calves and thighs
- Massage modes
- 3 modes / 9 stages
- Intensity settings
- 3 levels: low, medium and high
- Heating
- No heating in this configuration
- Automatic shut-off
- 15 minutes; changing the mode or intensity does not change the shut-off timing
- Power supply
- Wired adapter power

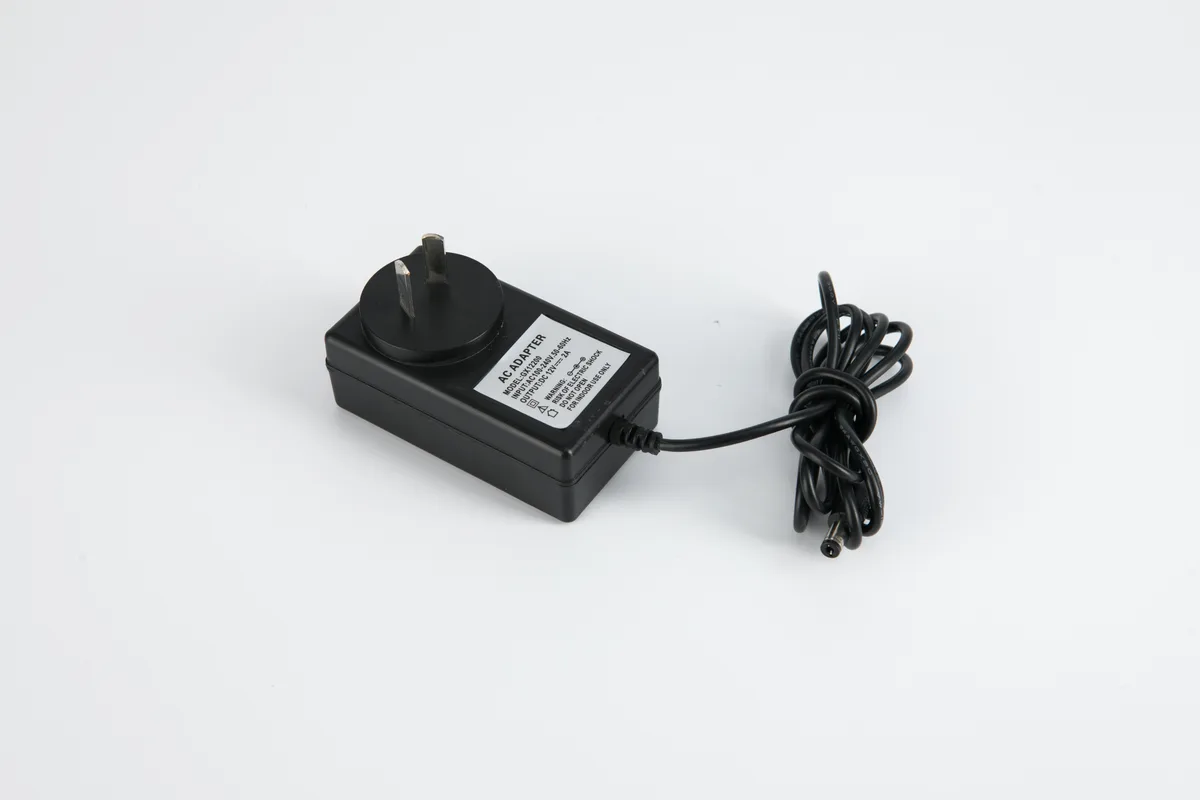

- Adapter output
- DC 12 V / 2 A
- Power
- 24 W
- Air pump pressure (component specification)
- 100–120 kPa
- Operating noise
- Below 60 dB
- Controller dimensions
- 173 × 58 × 48 mm (L × W × H)
- Wrap dimensions
- 830 × 320 mm (L × W)
- Controller + paired wraps weight
- 2000 g
- Operating temperature
- 0–40 °C
- Protection
- Overcurrent protection with automatic shut-off
These specifications describe the adapter-powered configuration in the supplied WY-804LS-L specification sheet (sheet model reference WY-801C). The 100–120 kPa value is the air pump component specification, not wrap operating pressure. Confirm the controller, wrap version and destination-market plug when reviewing samples and ordering.
Packing & logistics
Reference packing data.
| Color box size | 35 × 19 × 21 cm |
|---|---|
| Export carton size | 59.5 × 36.5 × 44 cm |
| 20 ft container loading | 2,250 pcs |
| 40 ft HQ container loading | 5,580 pcs |
Reference packing data from the factory catalog for the WY804A gray mesh configuration. Packing quantity is confirmed per order.
OEM customization
What we can customize on this model.
Customization is reviewed per project. Share your market and branding requirements to start.

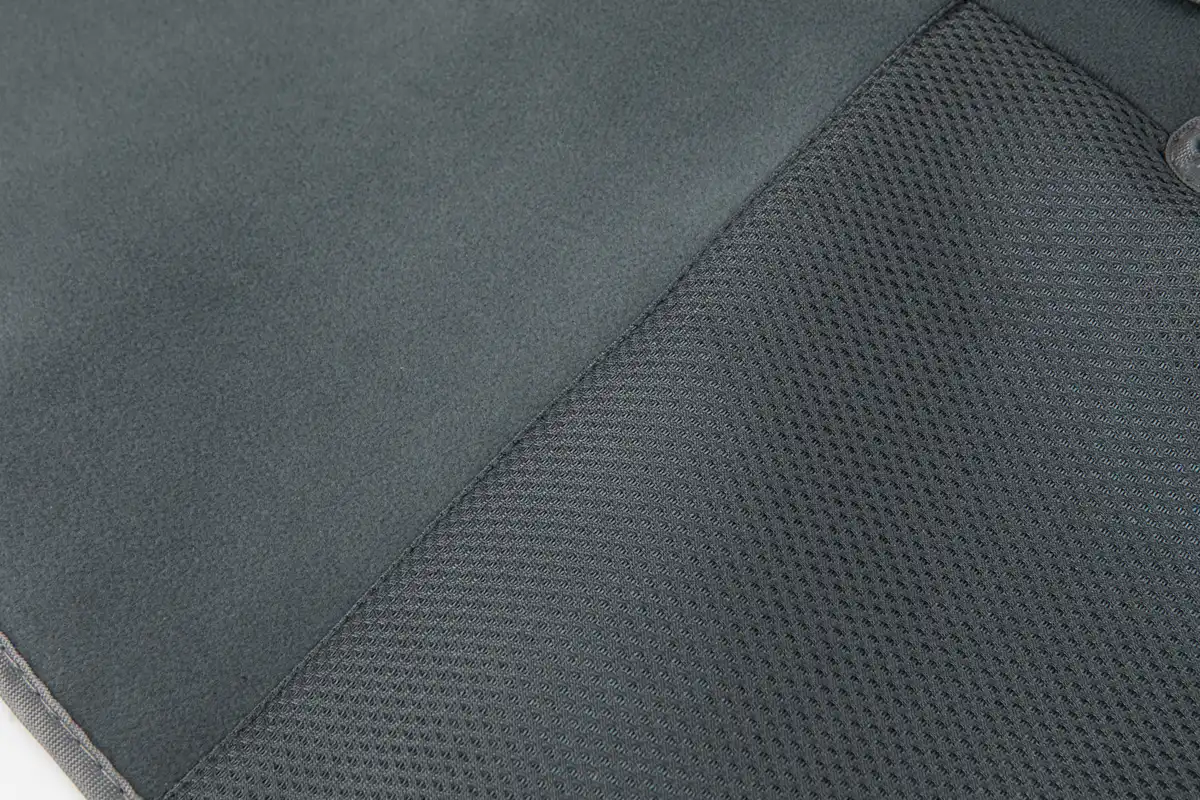

Colors & fabrics
Textile colors and finishes discussed per model, including mesh and embroidered versions.
Packaging
Color boxes and export cartons designed for your channel.
Manual language
Instruction manuals prepared in your market language; a Spanish manual already exists for the 804LS-L.
Voltage & plug
Adapter-powered and rechargeable configurations with plugs matched to the destination market.
Exclusive models
Exclusive model supply arrangements are available for OEM partners, agreed per project.
Model-specific information
Documents & downloads
Review the documents for your model, controller configuration and destination market together.
804A document review
No public download is attached to this model yet. Contact our team for the current specification sheet, instructions and relevant documents.
Configuration, availability and applicable documents are confirmed for the selected model.
Buyer FAQ
804A frequently asked questions
What is the MOQ for the 804A?
Minimum order quantity depends on the model and configuration. Confirm with our team when you send your enquiry.
Can I order a sample of the 804A?
Samples can be arranged for every model. Sample cost and delivery time are confirmed with our team per request.
Which certificates apply to the 804A?
Certificates and test reports are matched to specific models, and the mapping for export models is being confirmed. Tell us your destination market and we will provide the applicable document list for this model.
Can the 804A be customized for my brand?
Yes. Logo, color, textile, packaging, manual language and voltage/plug options are discussed per project. See the customization options on this page or our OEM/ODM page.
How long does delivery take for the 804A?
Stock items dispatch within 24 hours. Lead time for customized orders is confirmed with our team per order.
